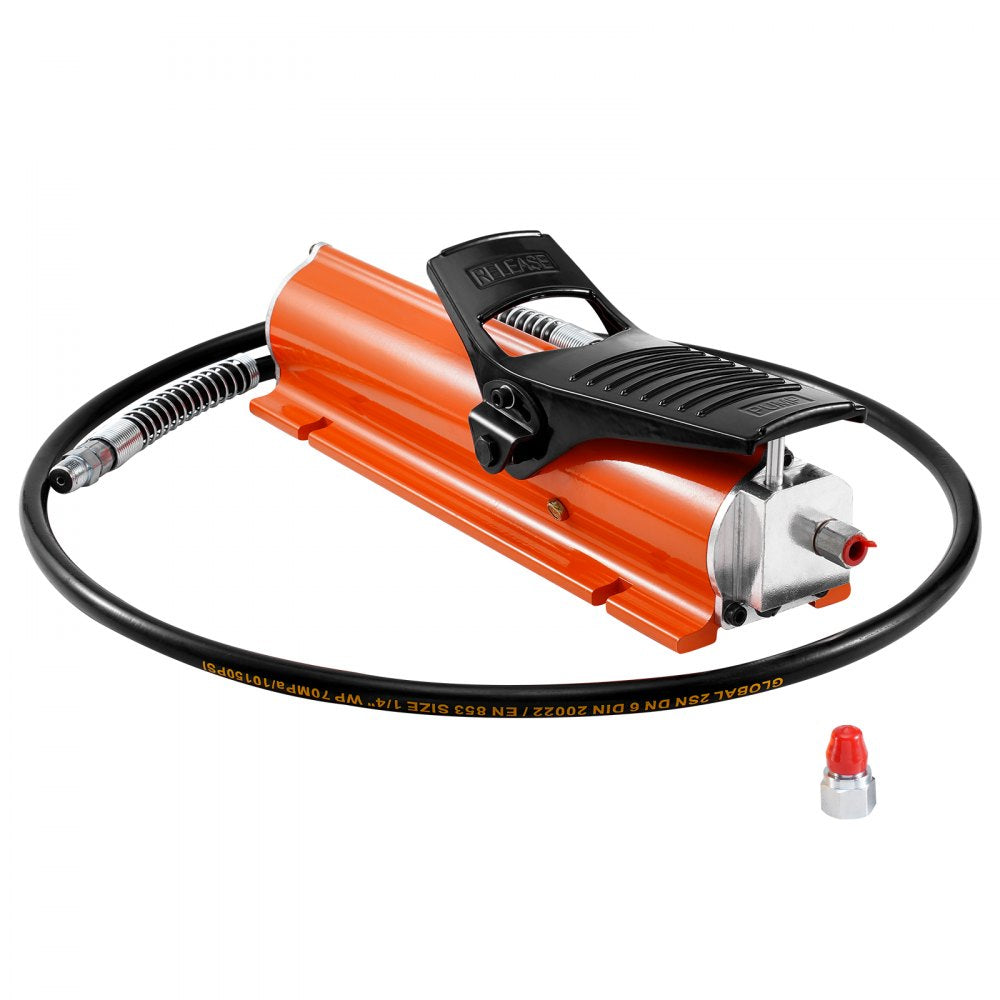

10,000PSI Air Hydraulic Pump, 0.18 Gal Reservoir, NPT 3/8 in Oil Outlet, NPT 1/4 in Inlet, Metal Shell Air Actuated Treadle Foot Pump, for Precision Industrial Machinery & Aerospace Equipment

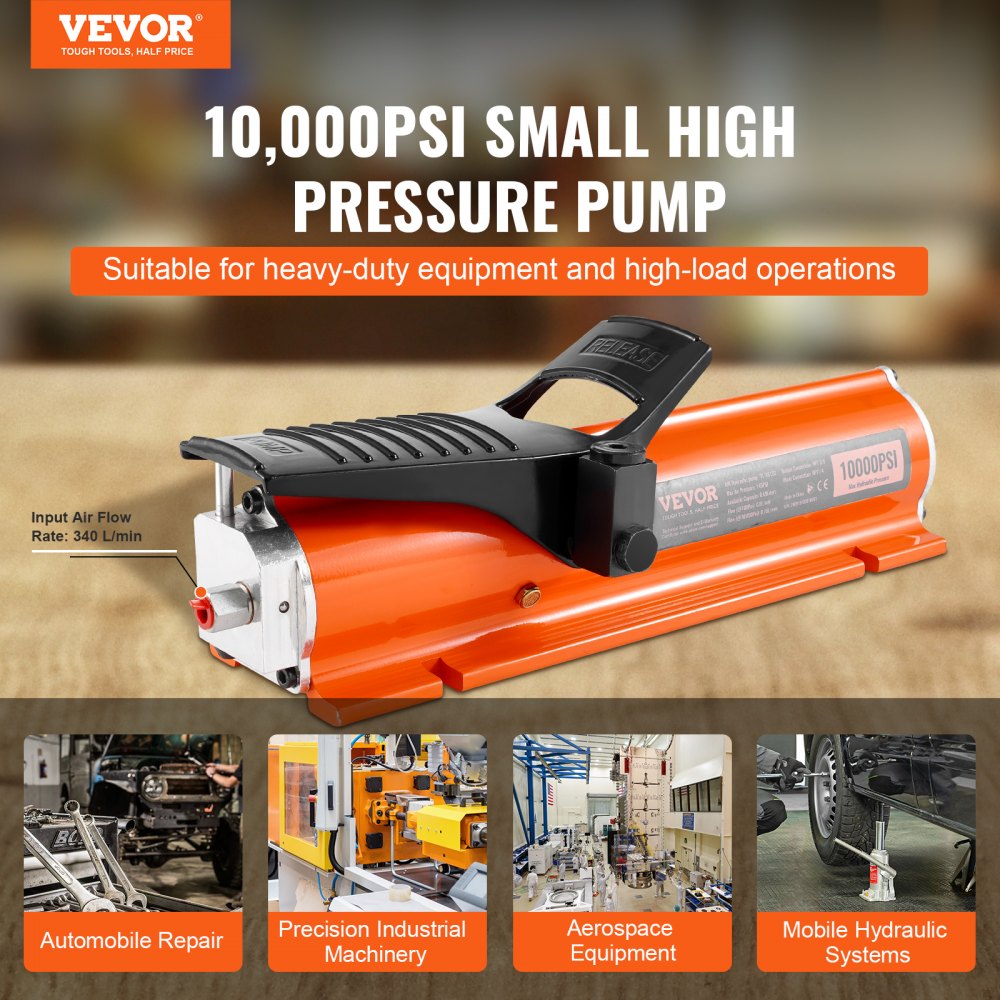

10,000 PSI High Power: Achieve up to 10,000 PSI of hydraulic pressure with an airflow of 340 L/min. This hydraulic air pump offers 0.8 L/min (no load) and 0.16 L/min (load) flow rates, making it ideal for heavy-duty tasks like lifting, pressing, bending, straightening, cutting, assembling, and disassembling.

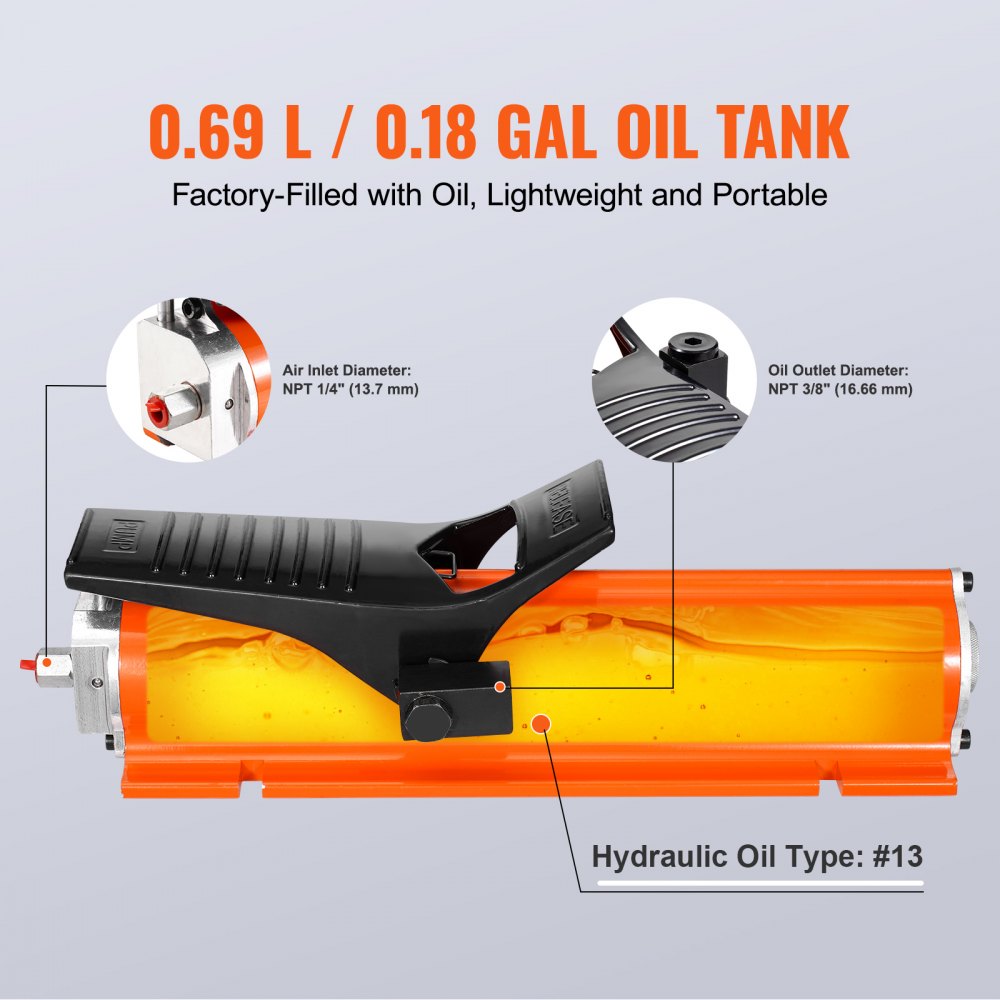

Factory-Filled with Oil: This air hydraulic pump comes with a large 0.69 L / 0.18 gal tank factory-filled with hydraulic oil (#13) so you can start working immediately. This feature cuts down on setup time and effort. It includes an air inlet with NPT 1/4 in and a high-pressure output with NPT 3/8 in.

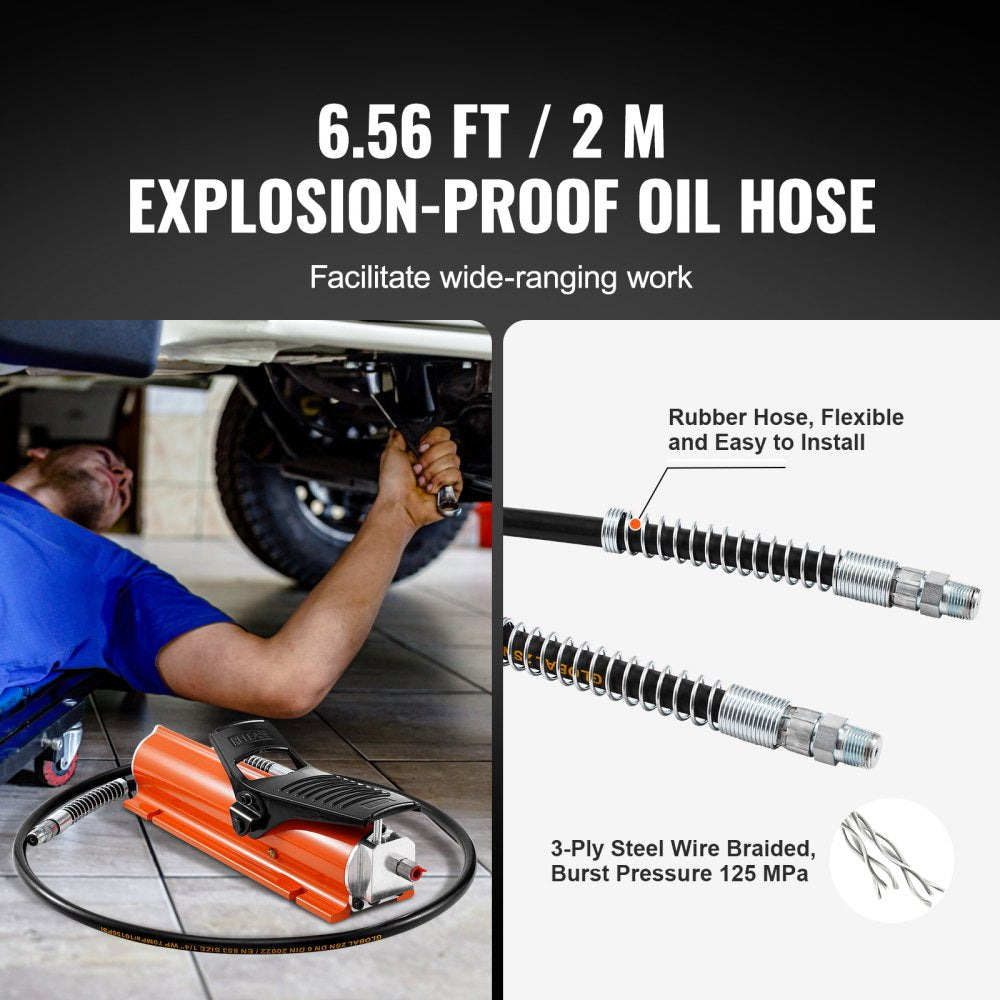

Long Oil Hose: This air actuated treadle foot pump equipped with a 6.56 ft / 2 m rubber hose reinforced with three layers of steel wire, capable of handling pressures up to 125 MPa. This design prevents leaks and allows for flexible, long-distance operation.

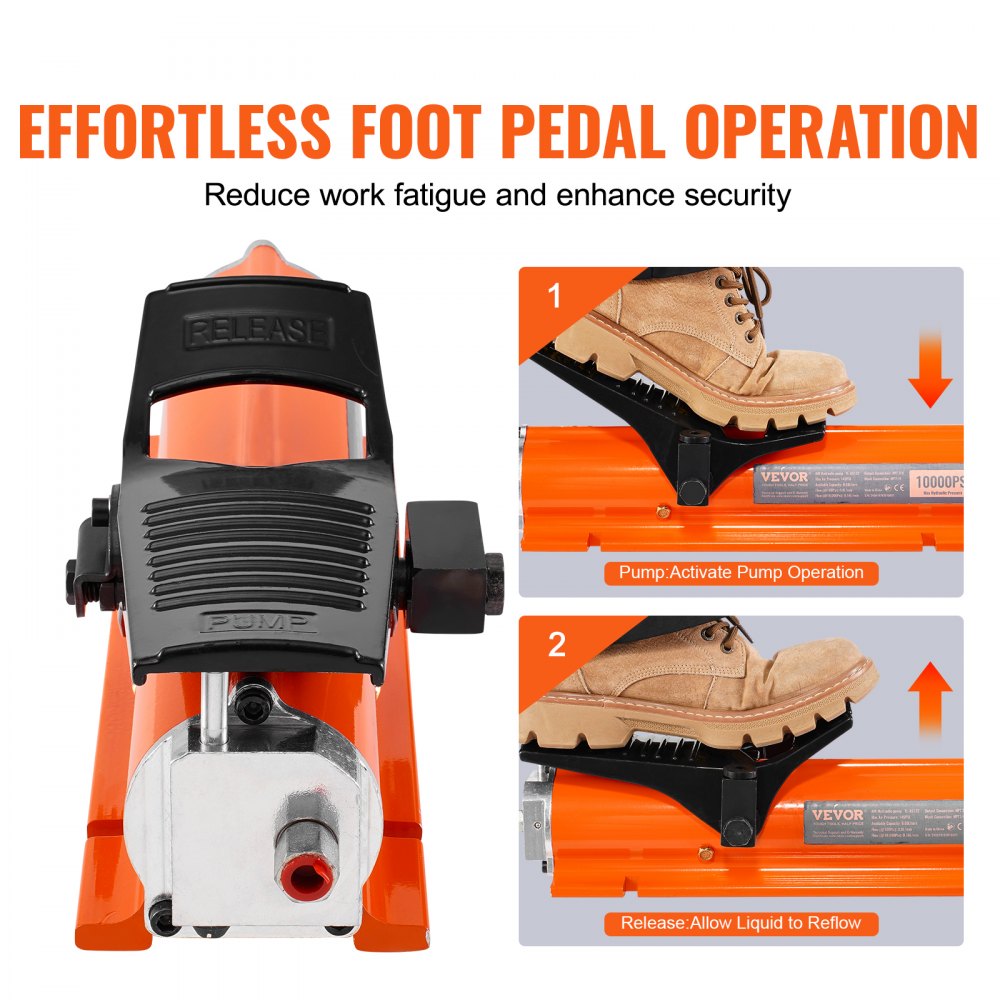

Effortless Foot Operation: The foot-operated air hydraulic pump includes hydraulic oil-no extra purchases are needed. Press down to build pressure and release quickly, making your job more straightforward and efficient.

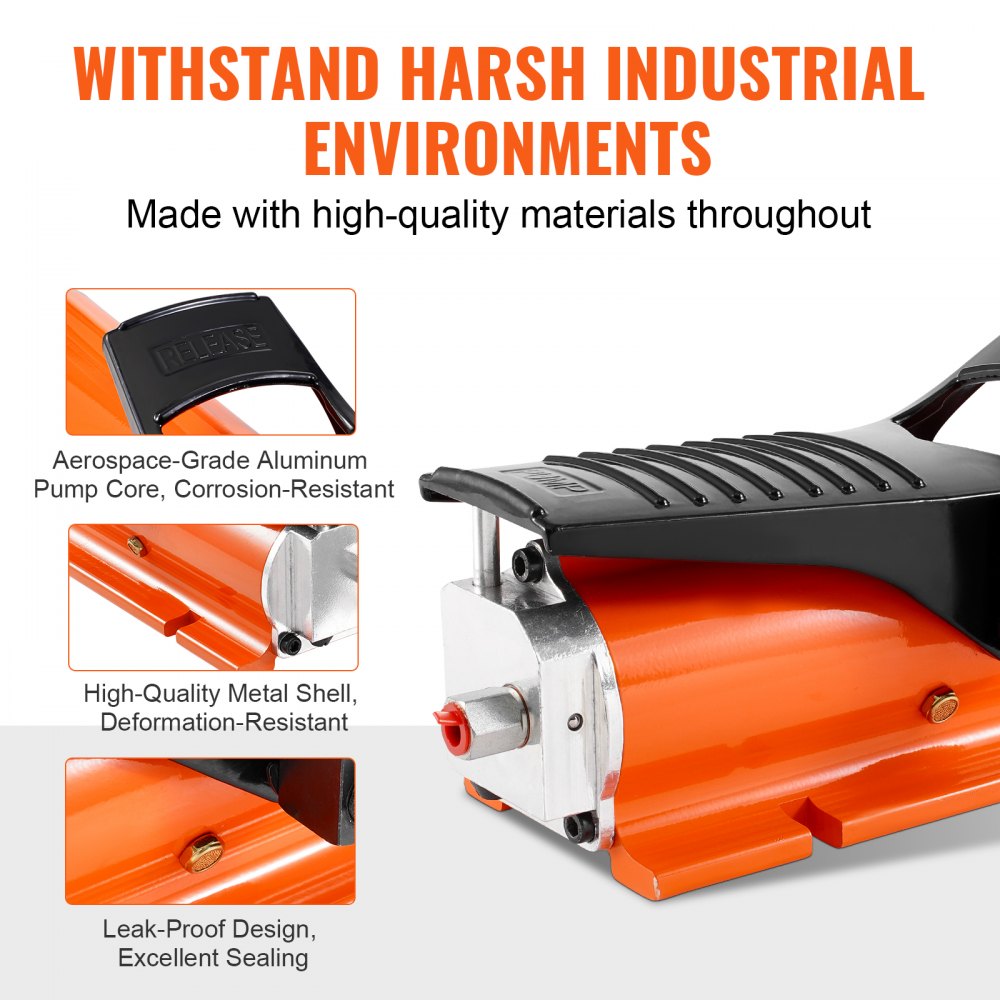

Durable and Tough: Made with aerospace-grade aluminum and a high-quality casing, this air hydraulic pump is built to withstand harsh industrial environments. The internal relief valve ensures reliable protection for the hydraulic components under pressure.

10,000PSI Air Hydraulic Pump, 0.18 Gal Reservoir, NPT 3/8 in Oil Outlet, NPT 1/4 in Inlet, Metal Shell Air Actuated Treadle Foot Pump, for Precision Industrial Machinery & Aerospace Equipment
10,000 PSI Power
Tough Shell
Easy Controls
Rock-Solid Stability
Quick & Easy Setup
Built for Tough Jobs

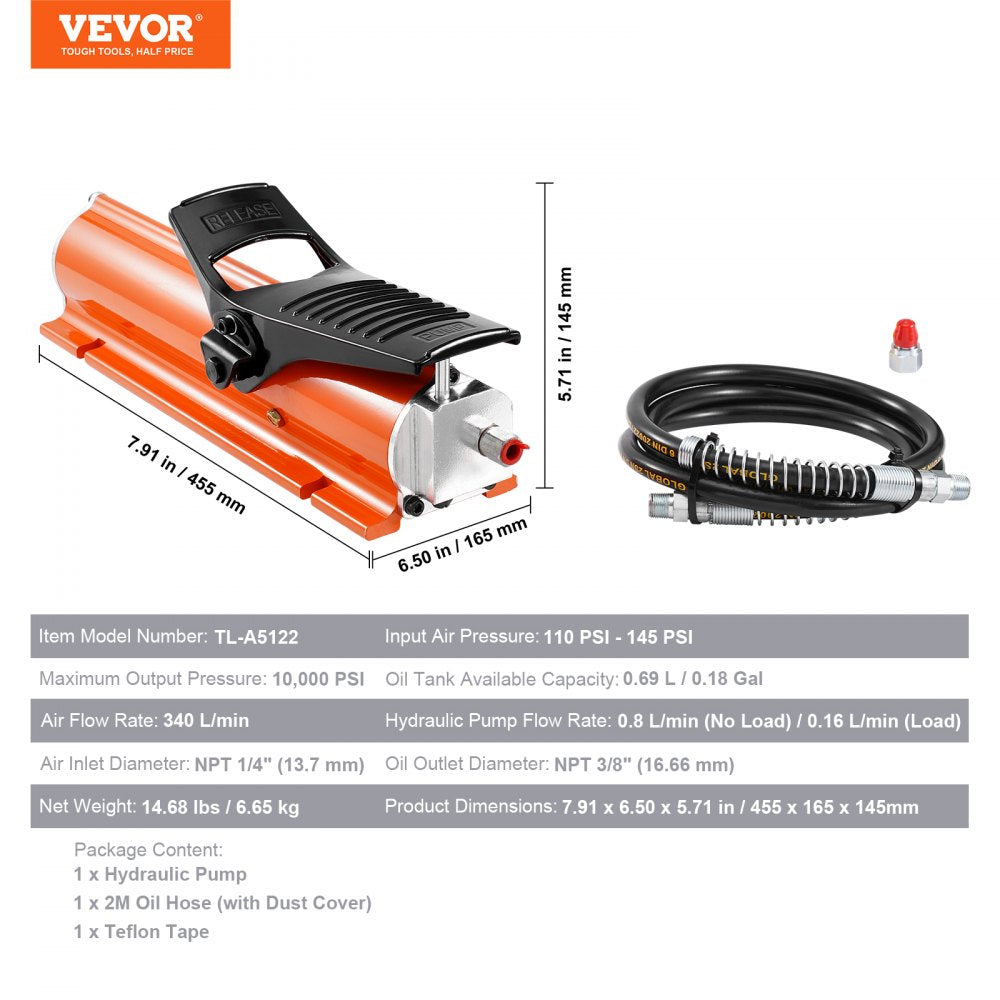

Input Air Pressure: 110 PSI - 145 PSI,Oil Tank Available Capacity: 0.69 L / 0.18 Gal,Air Inlet Diameter: NPT 1/4" (13.7 mm),Oil Outlet Diameter: NPT 3/8" (16.66 mm),Air Flow Rate: 340 L/min,Item Model Number: TL-A5122,Hydraulic Pump Flow Rate: 0.8 L/min (No Load) / 0.16 L/min (Load),Maximum Output Pressure: 10,000 PSI,Product Dimensions: 7.91 x 6.50 x 5.71 in / 455 x 165 x 145mm,Net Weight: 14.68 lbs / 6.65 kg
