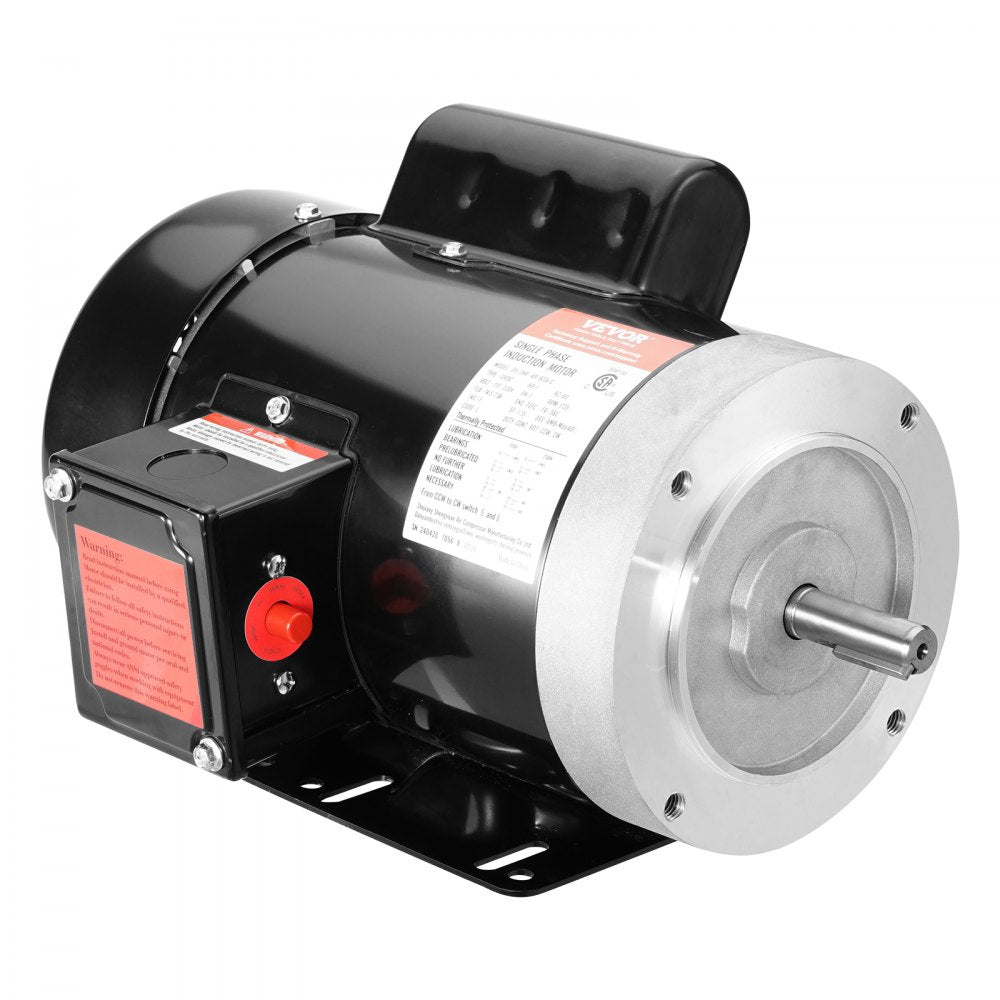

1HP Electric Motor 1725 rpm, AC 115V/230V, 56C Frame, Air Compressor Motor Single Phase, 5/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment

Powerful Performance: 1HP, Single Phase, Full Load Current: 14.5/7.5A, AC 115V/230V 60Hz, 1725 RPM High Speed, SF: 1.15.

Sturdy Frame Type: 56C Frame, 5/8" Keyed shaft, Shaft length: 1.88", Keyway size: 0.188".

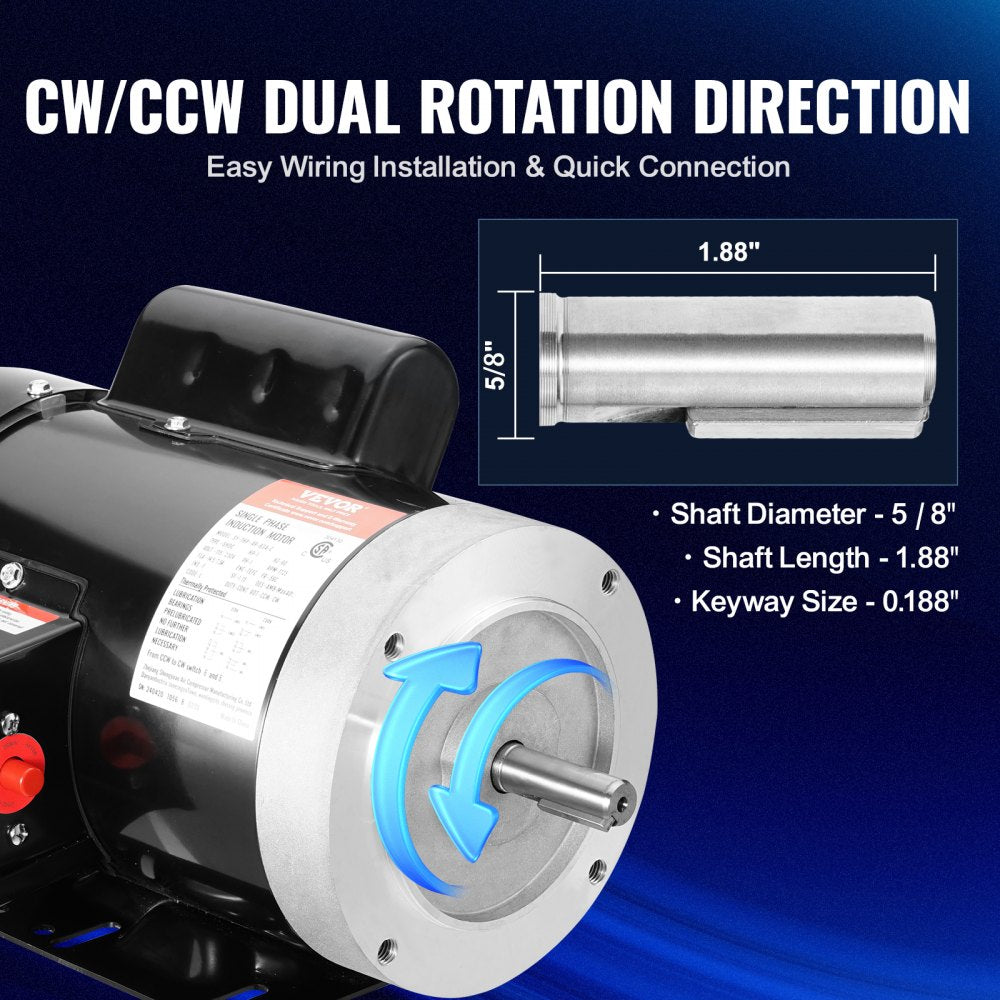

Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications.

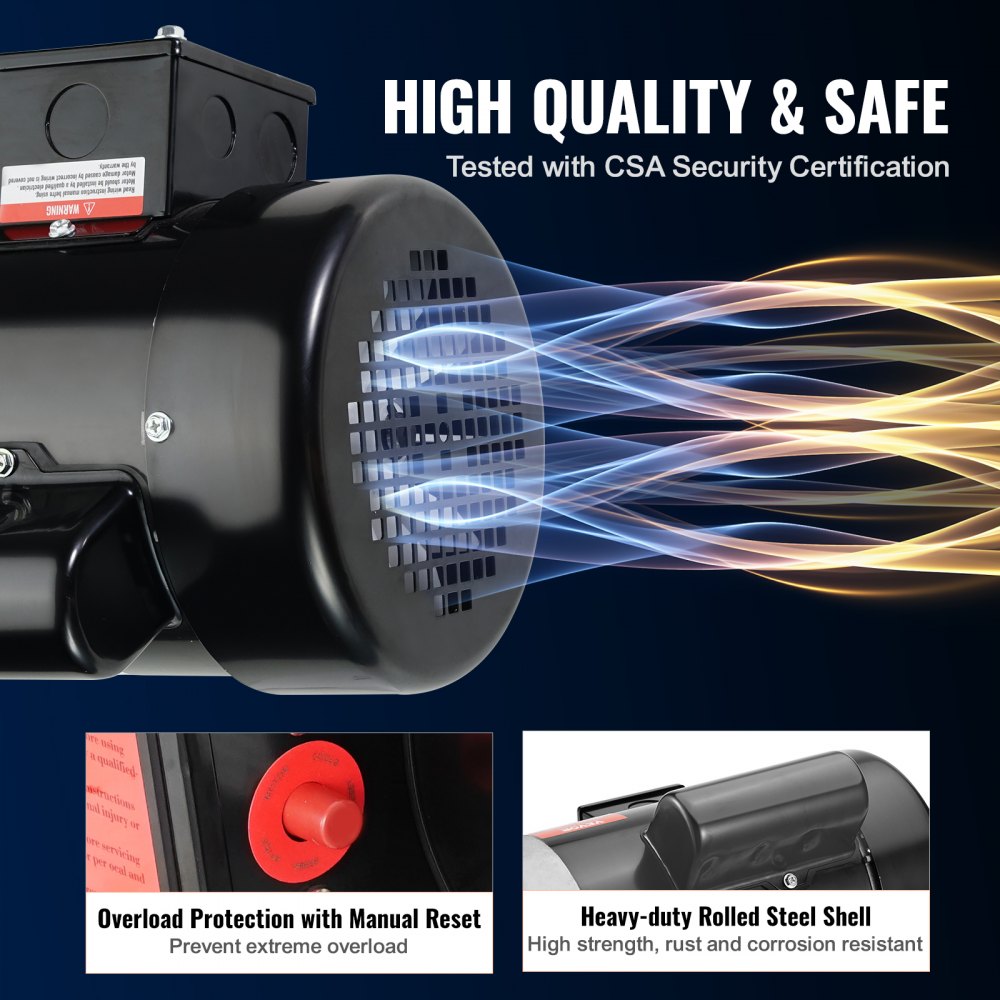

Durable and Safe: Tested to CSA standards, this air compressor motor boasts a heavy-duty rolled steel shell for enhanced durability. It also includes overload protection with manual reset, ensuring longer service life and dependable performance.

Wide Range of Applications: 1HP general purpose motor is universally applicable, ideal for water pumps, agricultural machinery, and general equipment. It`s perfect for DIY projects and repair replacements, providing versatile and powerful functionality for various needs.

1HP Electric Motor 1725 rpm, AC 115V/230V, 56C Frame, Air Compressor Motor Single Phase, 5/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment

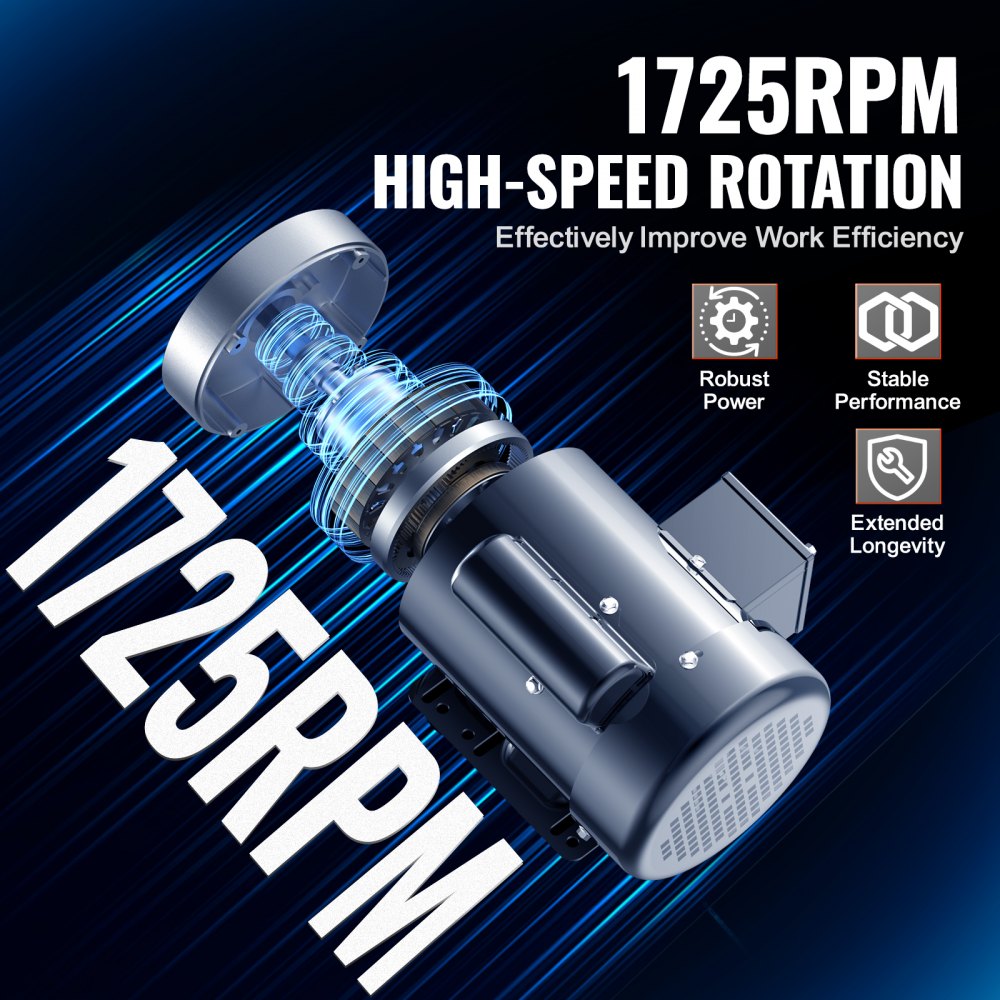

High Speed
Powerful Operation
Dual Rotation Direction
High Quality Construction
Safe to Use

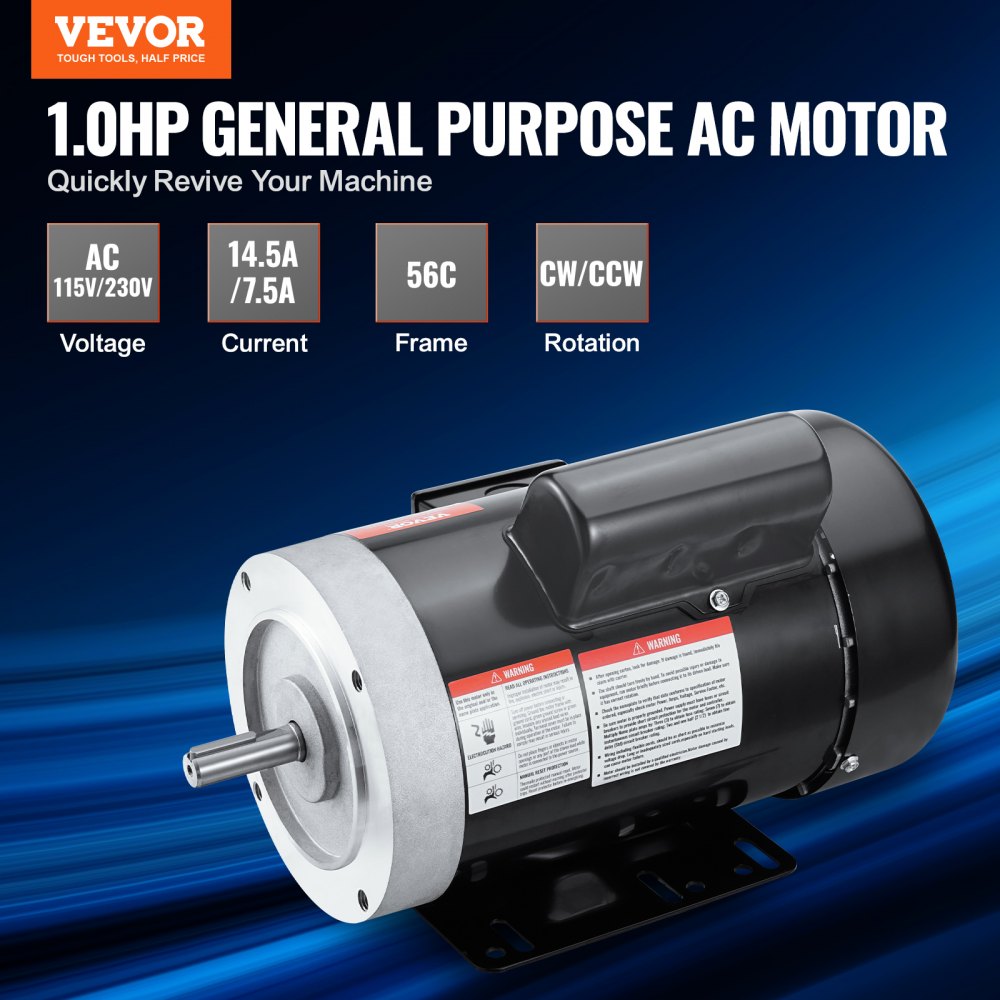

General Purpose AC Motor

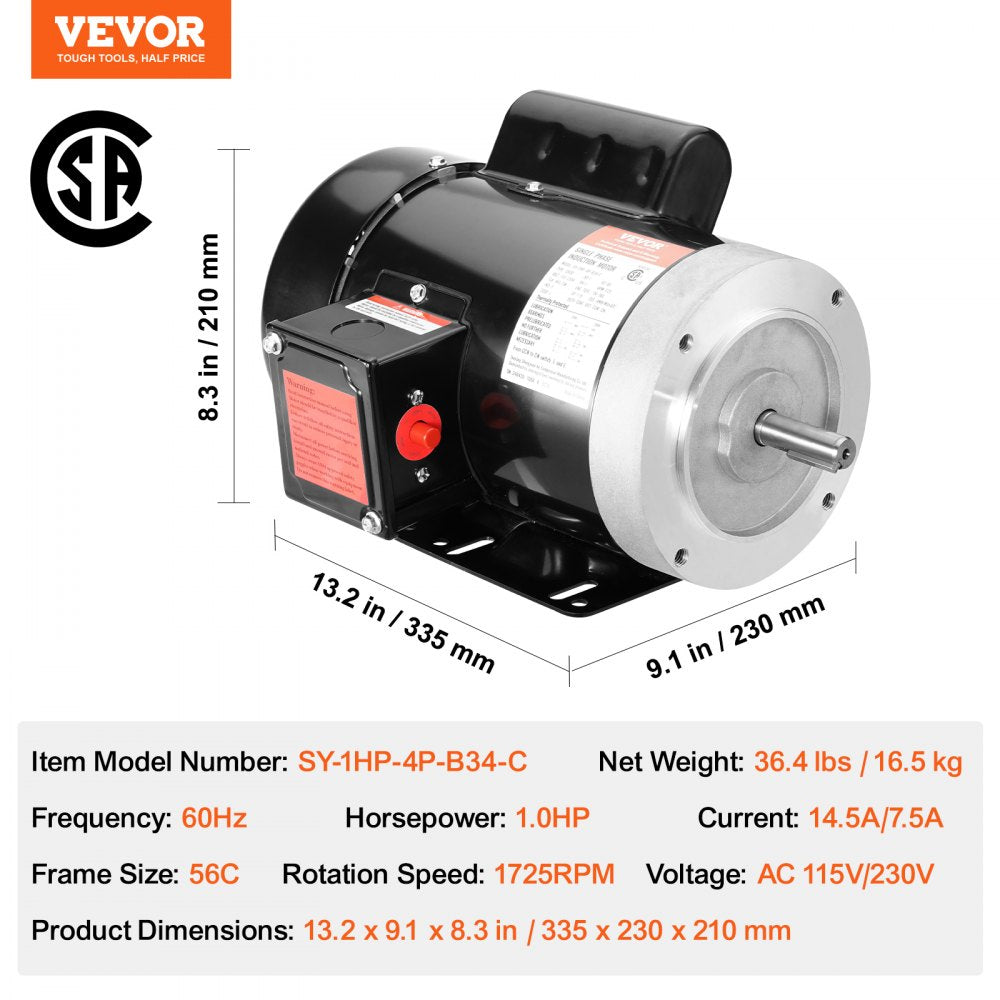

Horsepower: 1.0HP,Voltage: AC 115V/230V,Item Model Number: SY-1HP-4P-B34-C,Frequency: 60Hz,Product Dimensions: 13.2 x 9.1 x 8.3 in / 335 x 230 x 210 mm,Current: 14.5/7.5A,Net Weight: 36.4 lbs / 16.5 kg,Frame Size: 56C,Rotation Speed: 1725RPM
