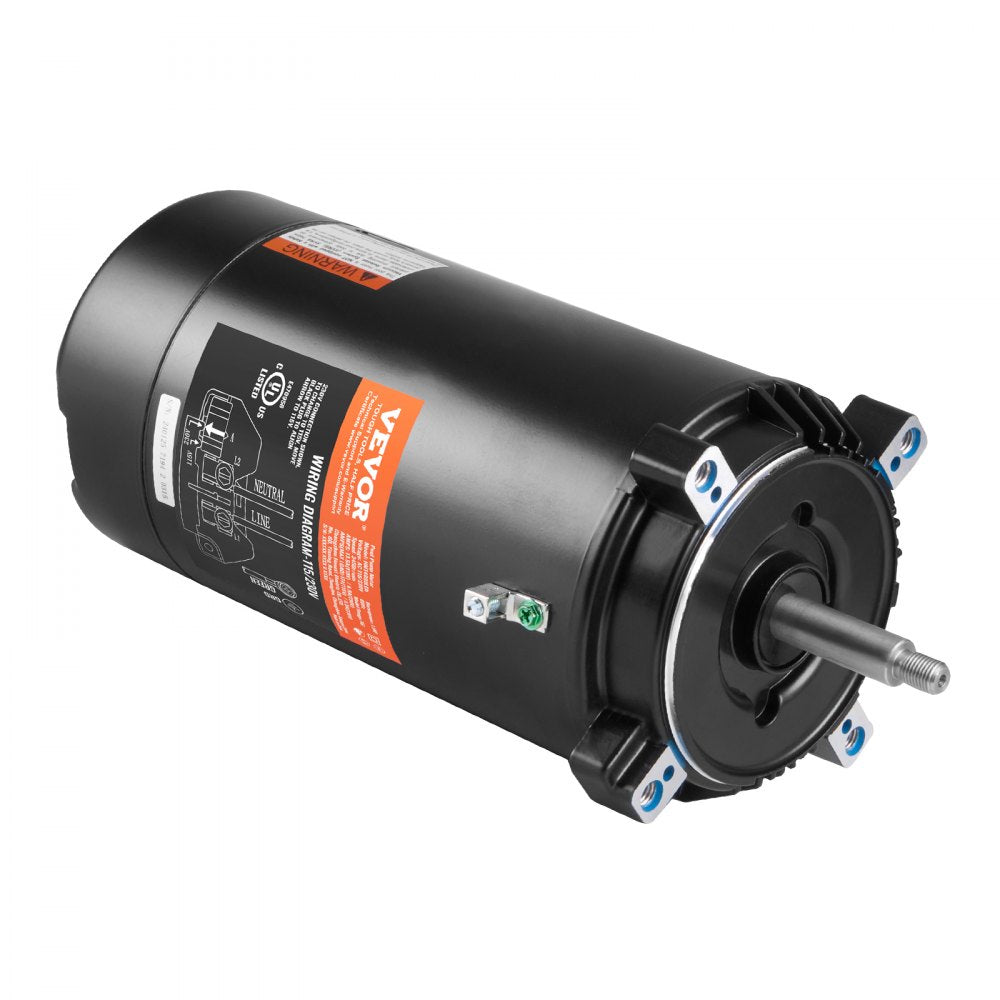

1.5 HP Pool Pump Motor, 56J Frame, 115V(13.6 Amps)/230V(6.8 Amps) 3450 RPM, 60Hz, 1.3 Service Factor, 90μF/250V Capacitor, CCW Rotation Round Flange Replacement Motor

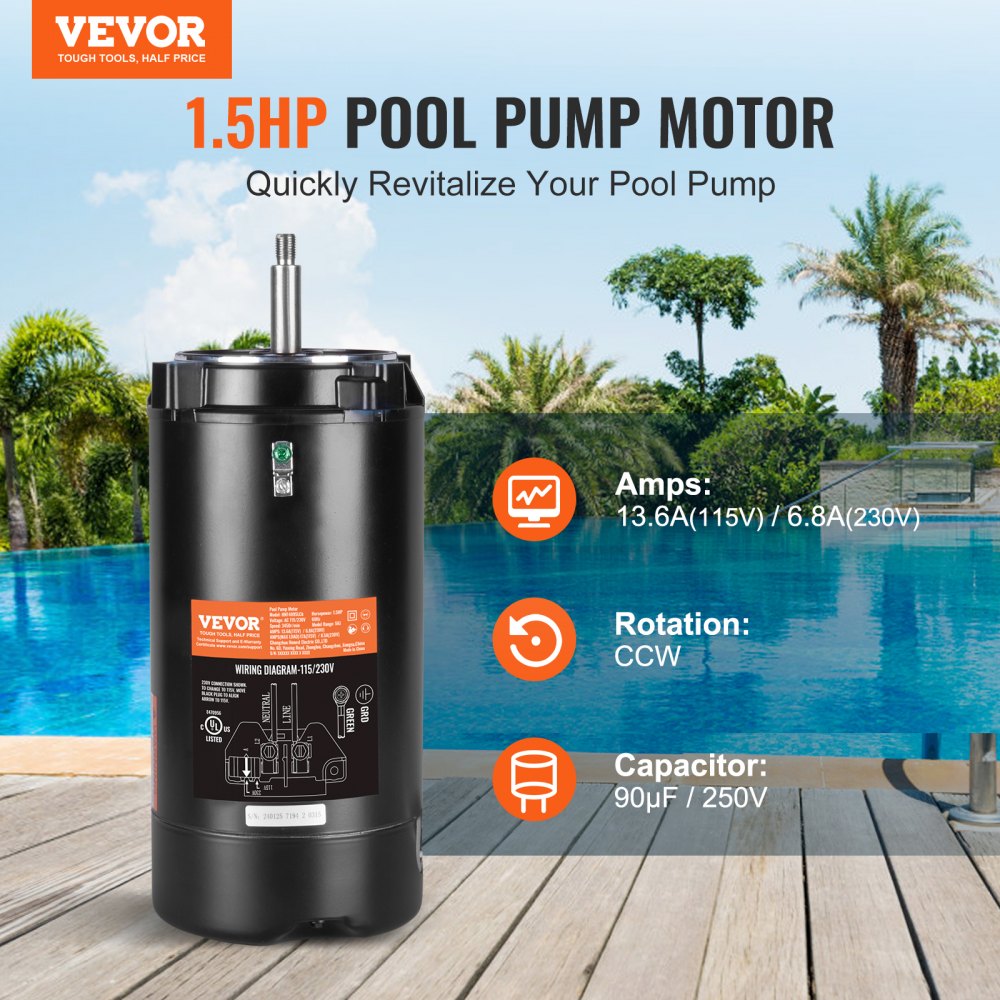

Reliable Performance: 1.5HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage - AC 115/230V

Amps: 13.6/6.8A

Amps (Max Load): 17/8.5A

SF: 1.3

Capacitor: 90μF/250V

Model Flange: 56J.

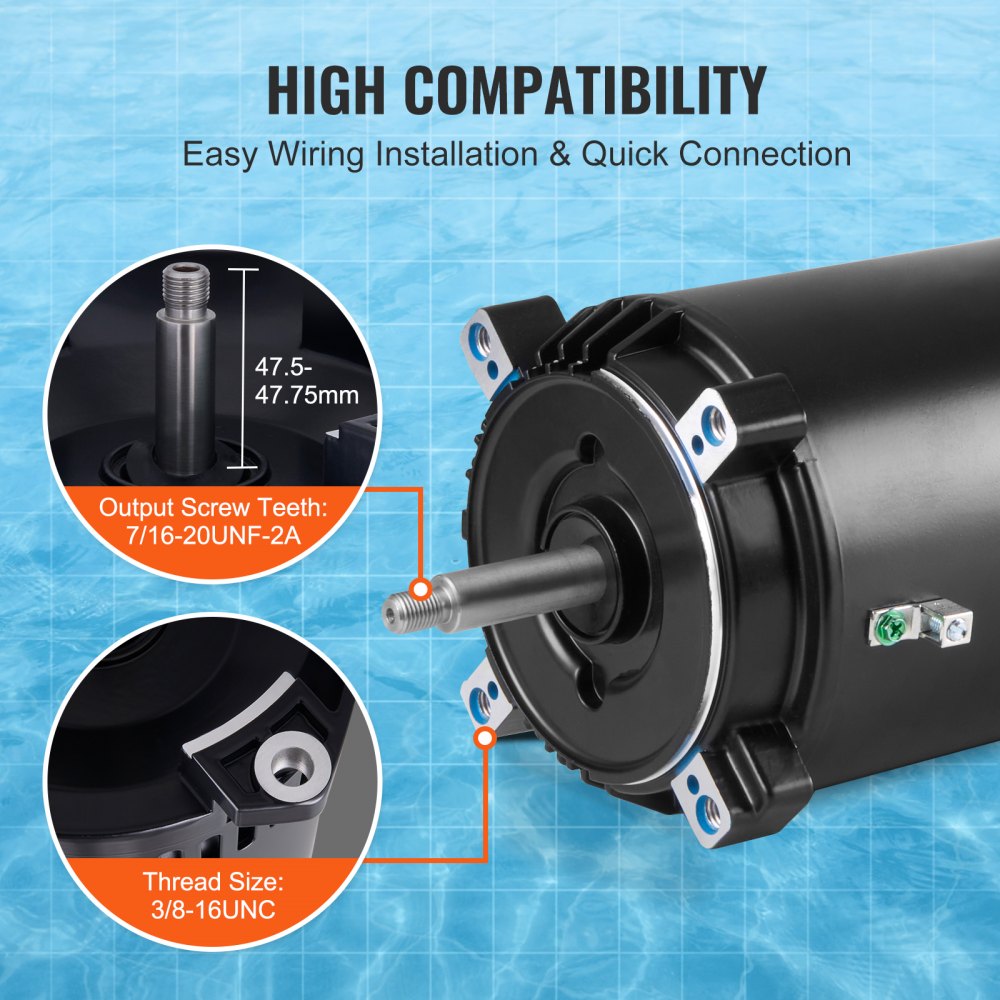

Easy Installation: Installing our swimming pool pump motor is a breeze with a thread size of 3/8-16UNC, output screw teeth of 7/16-20UNF-2A, and a 1.9-inch shaft extension. Get detailed installation instructions with the included user manual.

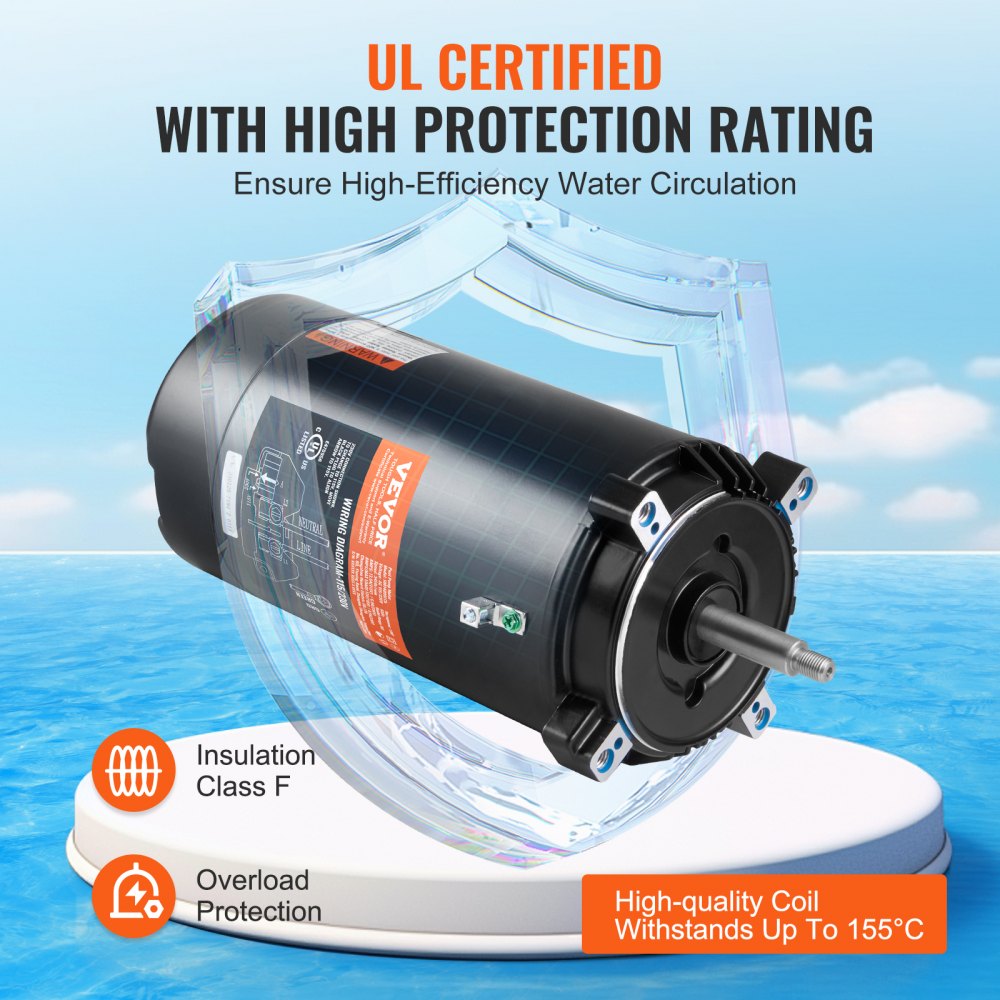

Safety and Durability: Our 1.5HP pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction. Tested to UL Standards and overload protection, it ensures safe and enduring power support for pool system.

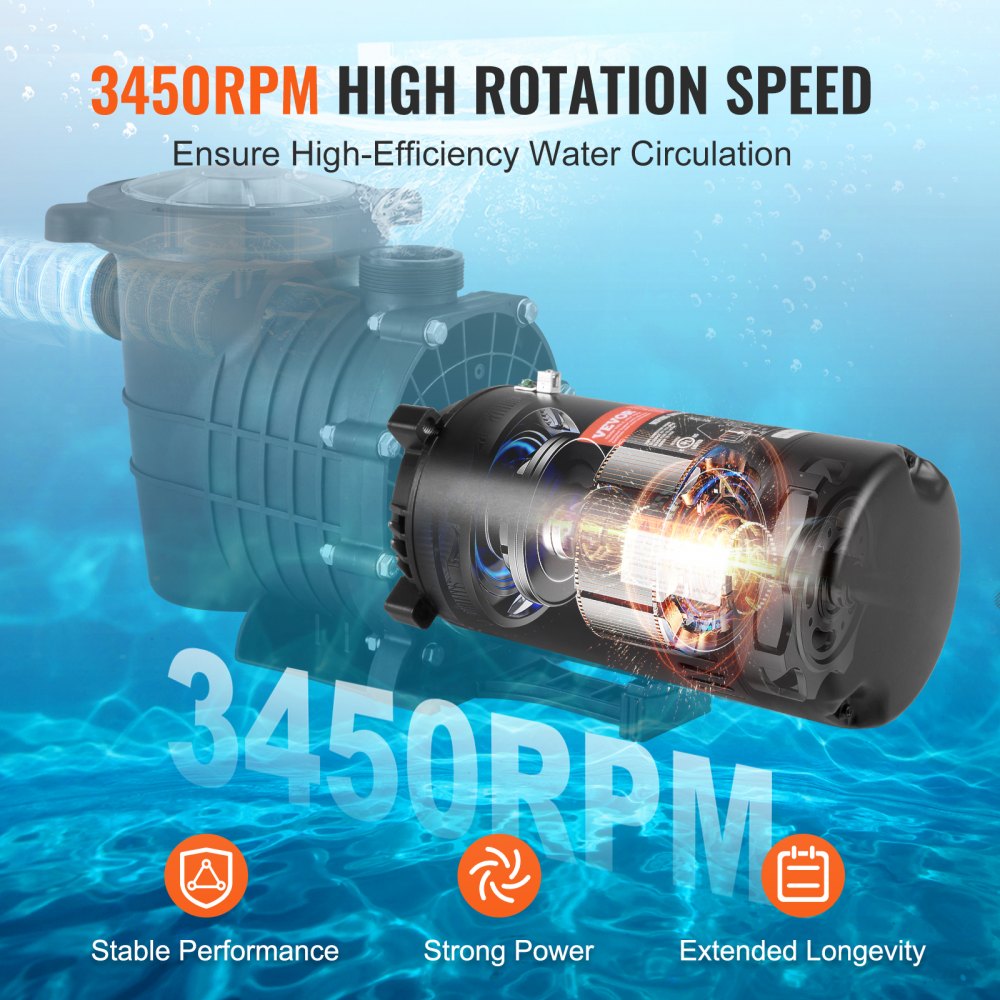

High Efficiency, Energy-Efficient: pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 65db low noise level. Dive into a refreshing pool experience with reliability and tranquility.

Revitalize Your Pool Pump: Pump it up for all your pools. Our versatile pool pump motor caters to various types of pools - from residential to commercial settings, bringing you a clean and clear swimming water environment, thereby enhancing pool performance and vitality.

1.5 HP Pool Pump Motor, 56J Frame, 115V(13.6 Amps)/230V(6.8 Amps) 3450 RPM, 60Hz, 1.3 Service Factor, 90μF/250V Capacitor, CCW Rotation Round Flange Replacement Motor
High-Speed Performance
Effortless Installation
Exceptional Durability
Stable Operation
Quiet Performance
Enhanced Swimming Experience

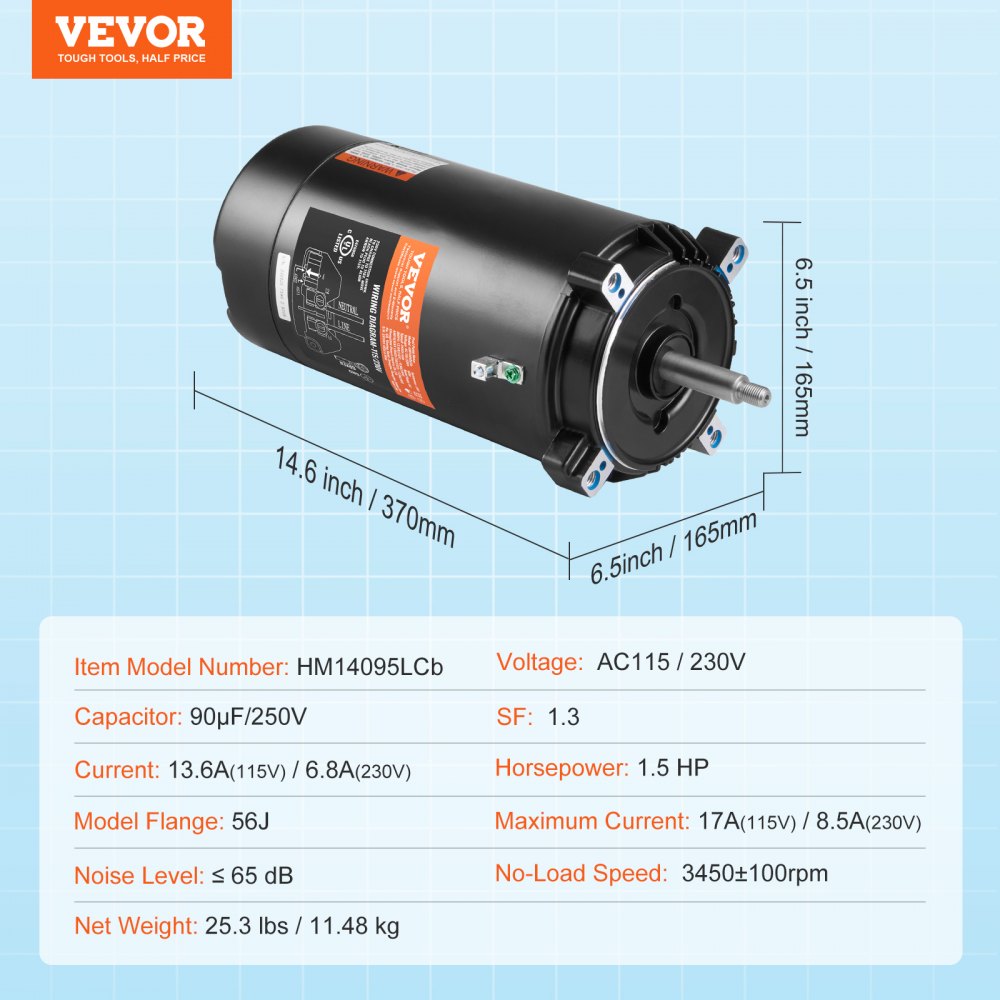

Noise Level: ≤ 65 dB,Horsepower: 1.5 HP,Voltage: AC 115/230V,Item Model Number: HM14095LCb,Model Flange: 56J,No-Load Speed: 3450 RPM,Product Dimensions: 14.6 x 6.5 x 6.5 inch/370 x 165 x 165 mm,Capacitor: 90μF/250V,Current: 13.6A(115V) / 6.8A(230V),Current (Max Load): 17A(115V) / 8.5A(230V)
