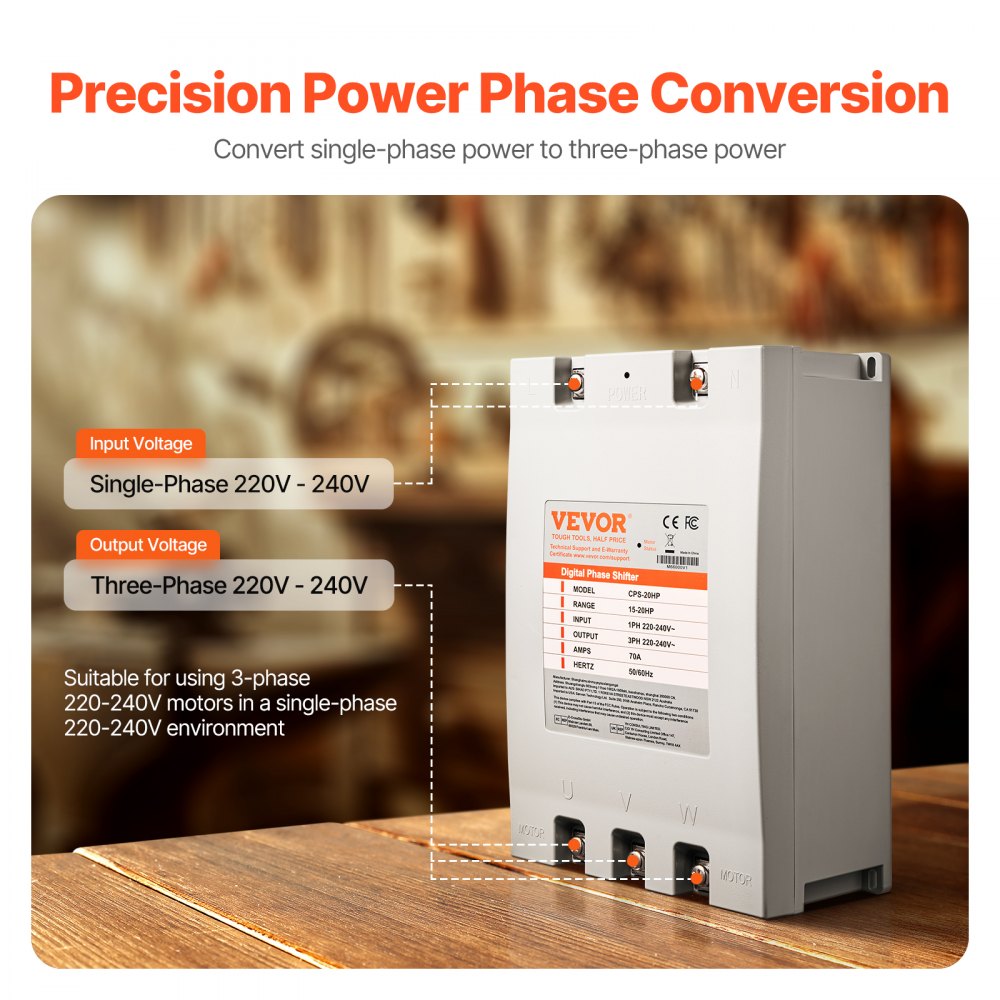

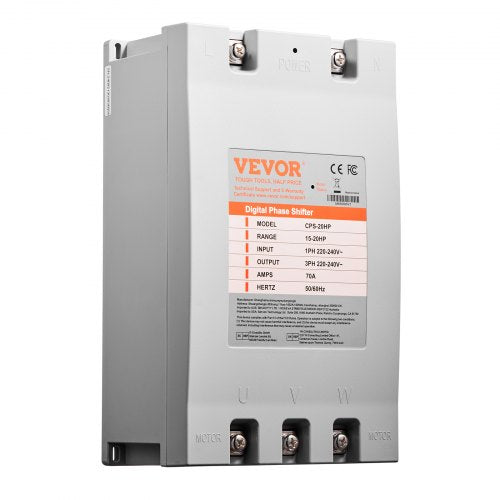

3 Phase Converter 20HP 70A 220V Single to 3 Phase 220V-240V Input/Output

Precise Phase Conversion: 20HP digital phase converter excels in transforming single-phase to 3-phase power, ideal for operating 220-240V motor equipment that requires a three-phase input. With compact size, high energy efficiency, and easy installation, it`s an optimal choice for precision power conversion.

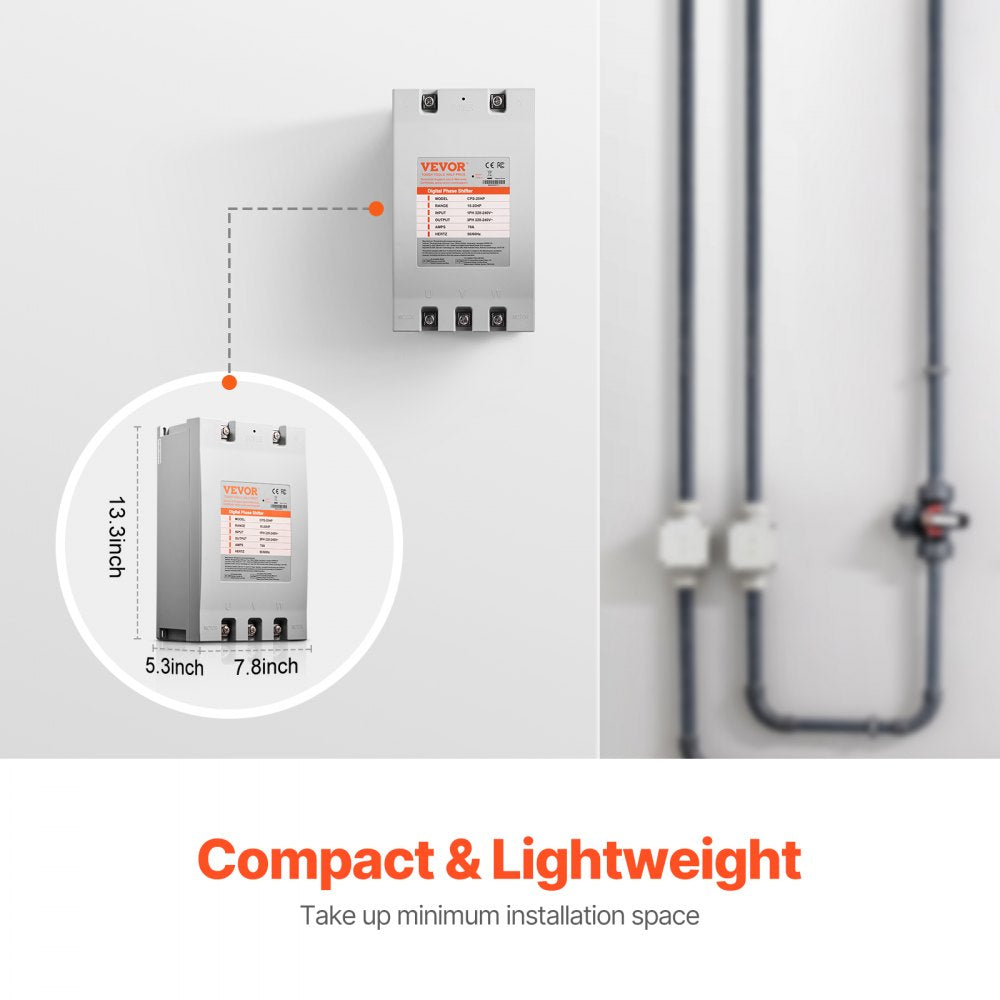

Compact and Effortless Installation: With dimensions of just 13.3" x 7.8" x 5.3" and weighing only 9.0 lbs, this digital phase converter occupies minimal space. It`s ideally suited for both residential and small-scale commercial settings, offering a space-saving alternative to bulkier traditional inverters.

High Efficiency, Cost Savings: The 3 phase converter excels in energy efficiency, operating without high-frequency interference and offering lower power consumption. Long-term use brings substantial energy and operational cost savings.

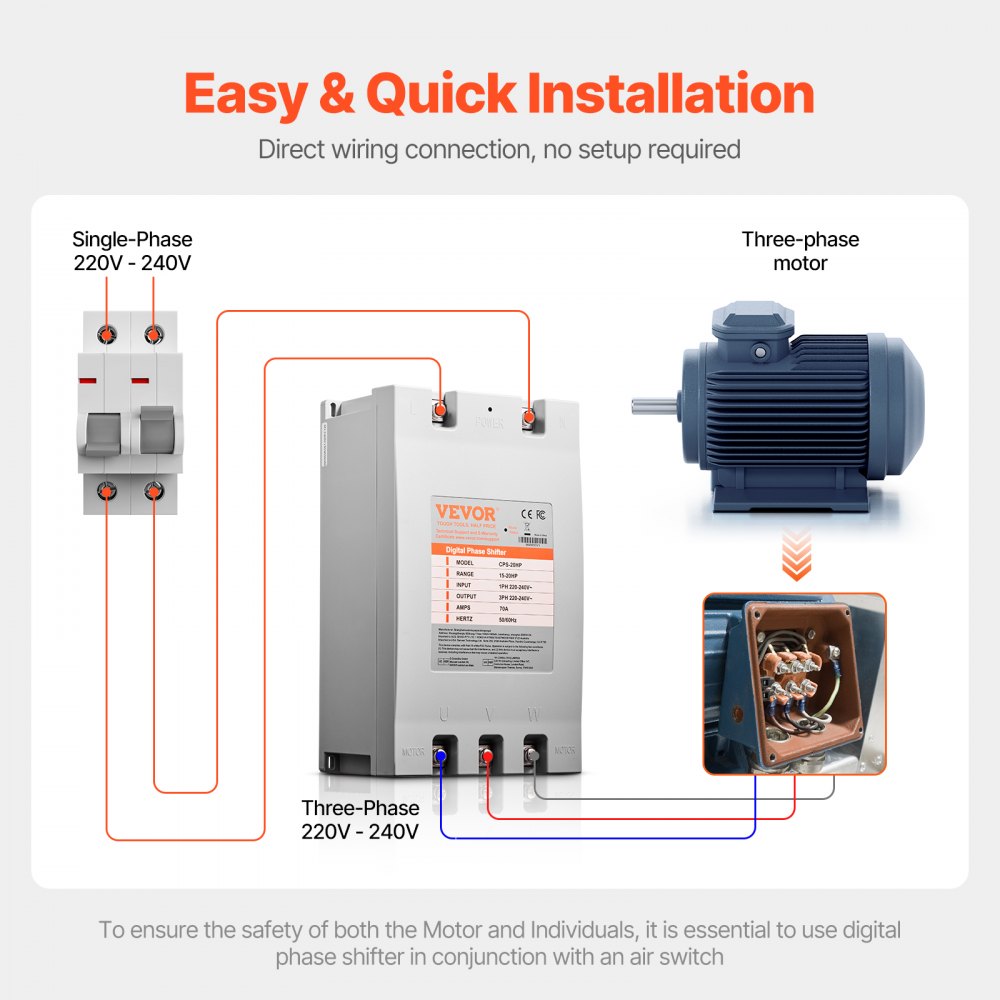

Simple and User-Friendly Setup: Installation is straightforward—simply connect the power supply and motor lines. There`s no need for complex programming, making it user-friendly. For added safety and reliability, it`s recommended to use with an air switch.

Versatile Applications: Perfectly suited for high-powered motor-driven equipment in residential and commercial settings. Whether for power tools in a garage or woodworking machinery in a small business, this phase converter provides stable and reliable three-phase power, meeting diverse motor power requirements.

3 Phase Converter 20HP 70A 220V Single to 3 Phase 220V-240V Input/Output
Simple Wiring Connection
Wide Applications
High Performance
Small in Size, Light in Weight
Energy-Saving
Accurate Power Transformation

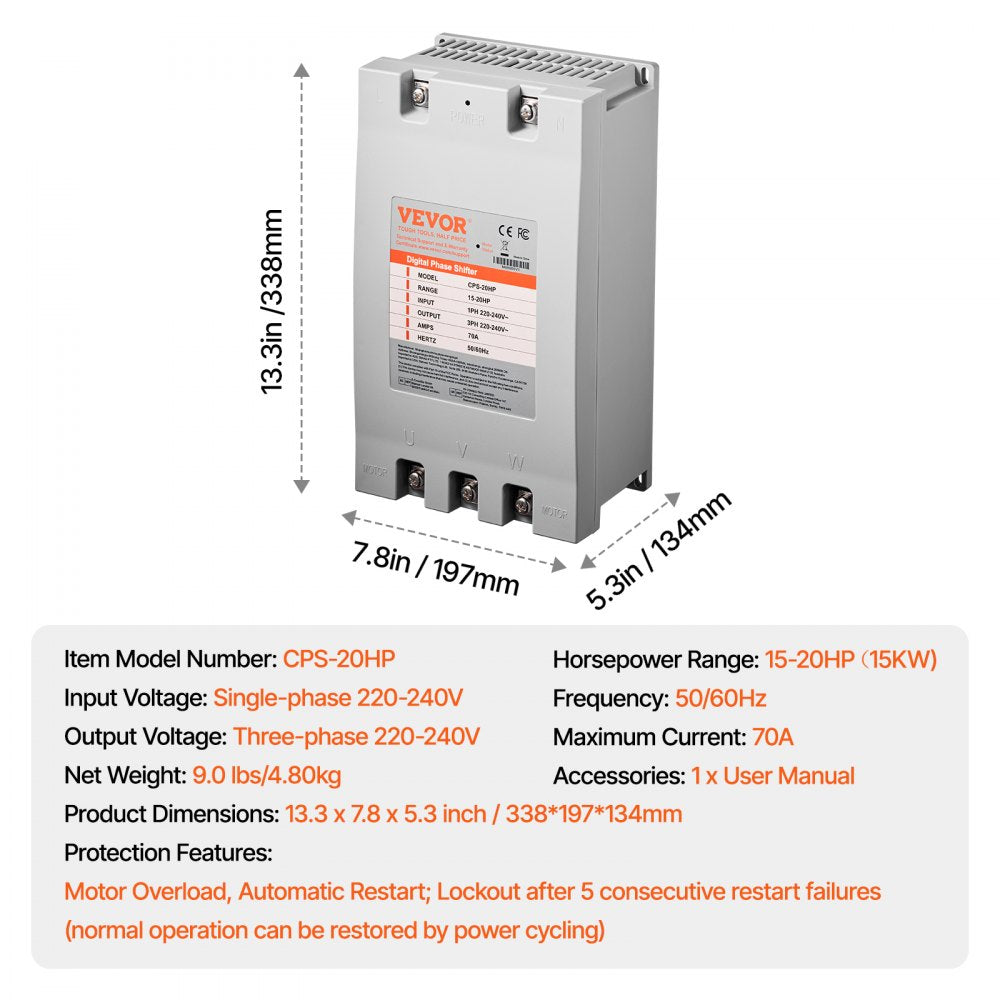

Maximum Current: 70A,Item Model Number: CPS-20HP,Frequency: 50/60Hz,Input Voltage: Single-phase 220 - 240V,Horsepower Range: 15 - 20HP (15KW),Product Dimensions: 13.3 x 7.8 x 5.3 in / 338 x 197 x 134 mm,Output Voltage: Three-phase 220 - 240V,Net Weight: 9.0 lbs / 4.80 kg
