Description
Description
x
electric motor: 1 hp, single-phase, 3600rpm, 56c frame with industrial background.
black and silver electric motor with warning label and specifications panel.
1 HP 3450 RPM Electric Motor
Single Phase & TEFC Enclosure & Fast Heat Dissipation
`s single phase electric motor is rated at 1 HP 3450 RPM and can be connected to 115/230V incoming power devices. This general purpose electric motor conforms to the standard for high hardness and performance, which is well suited for water pumps, agricultural machinery, and general equipment. Built tough to work tough, Our motor will have your equipment roaring for the next job!
  • Single Phase Electric Motor
  • Excellent Working Efficiency
  • Sturdy Steel Construction
  • High-Speed Cooling Fan

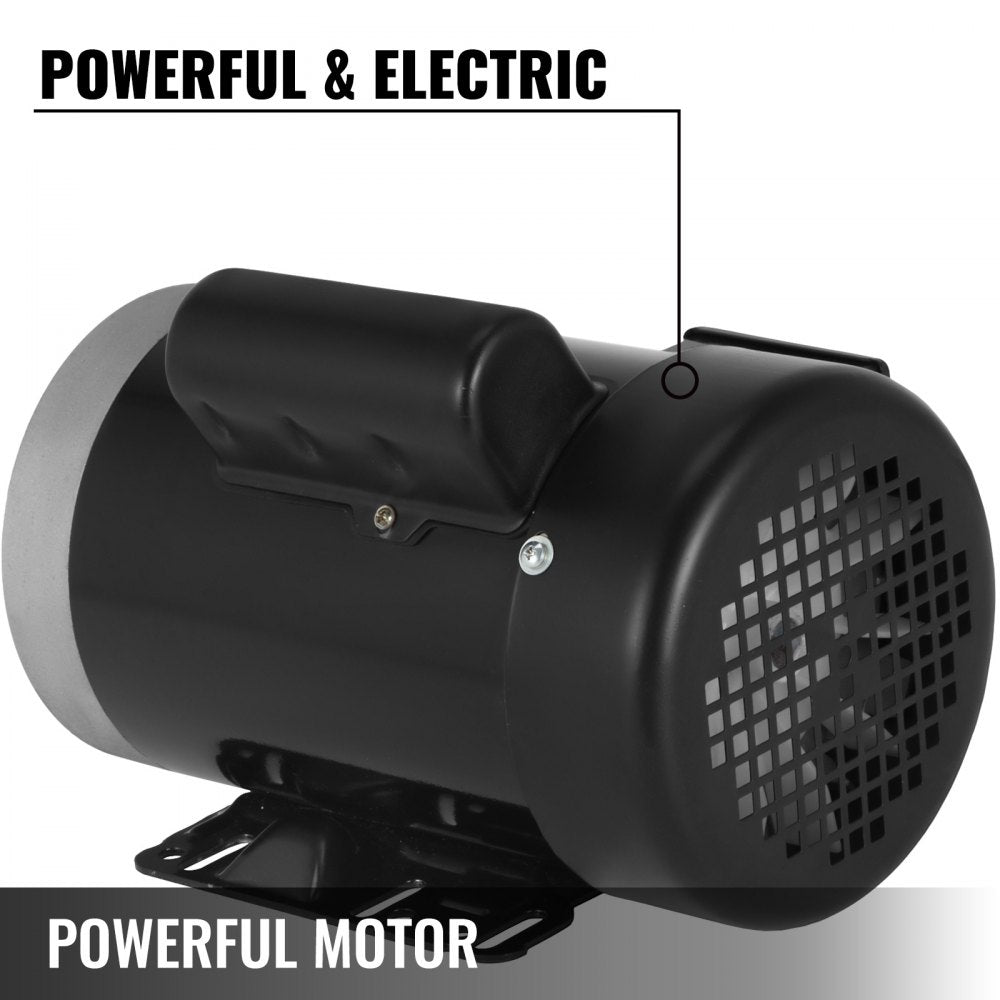

electric motor in black, labeled "powerful & electric" with a focus on its power.
High-Performance Motor
1hp air compressor motor allows you to conserve energy over extended periods, reducing power costs and overheads, and maintaining a high working efficiency.

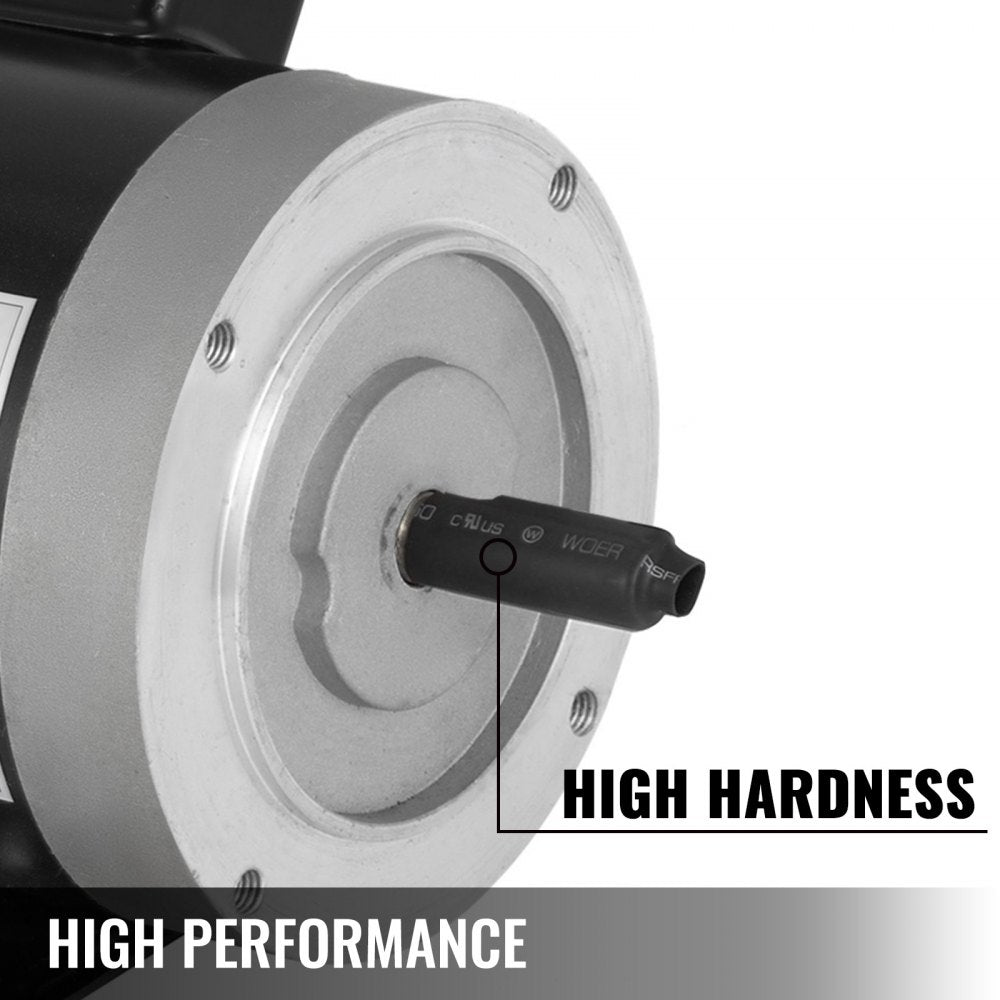

electric motor with high hardness and high performance features.
3450 RPM High Speed
The motor for air compressor runs at 3450 RPM, Synchronous Speed: 3600 RPM. Our high-quality steel shaft characterized by its low rotating noise and stable operation.

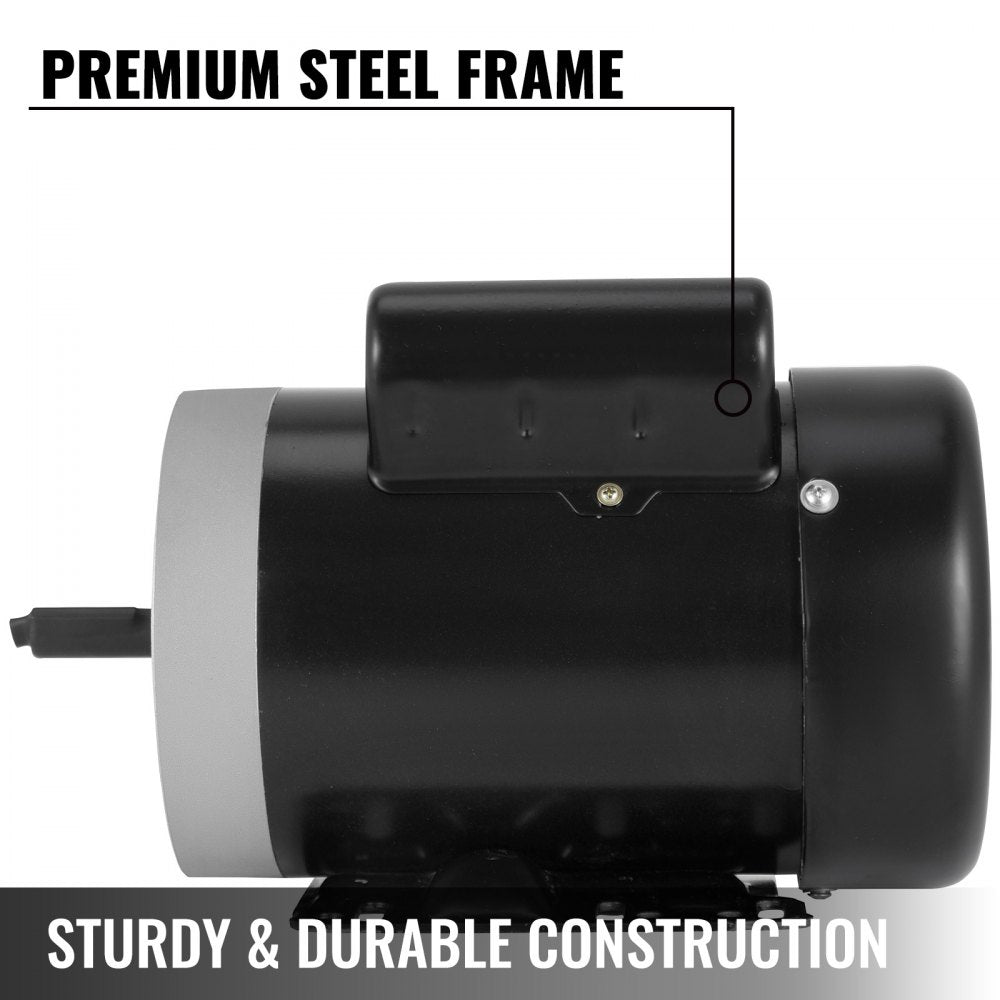

electric motor with premium steel frame and sturdy, durable construction.
Rugged & Durable Construction
The 3450 rpm electric motor housing is constructed from reliable metal material, which features robustness, strength, and durability, offering a long service life.

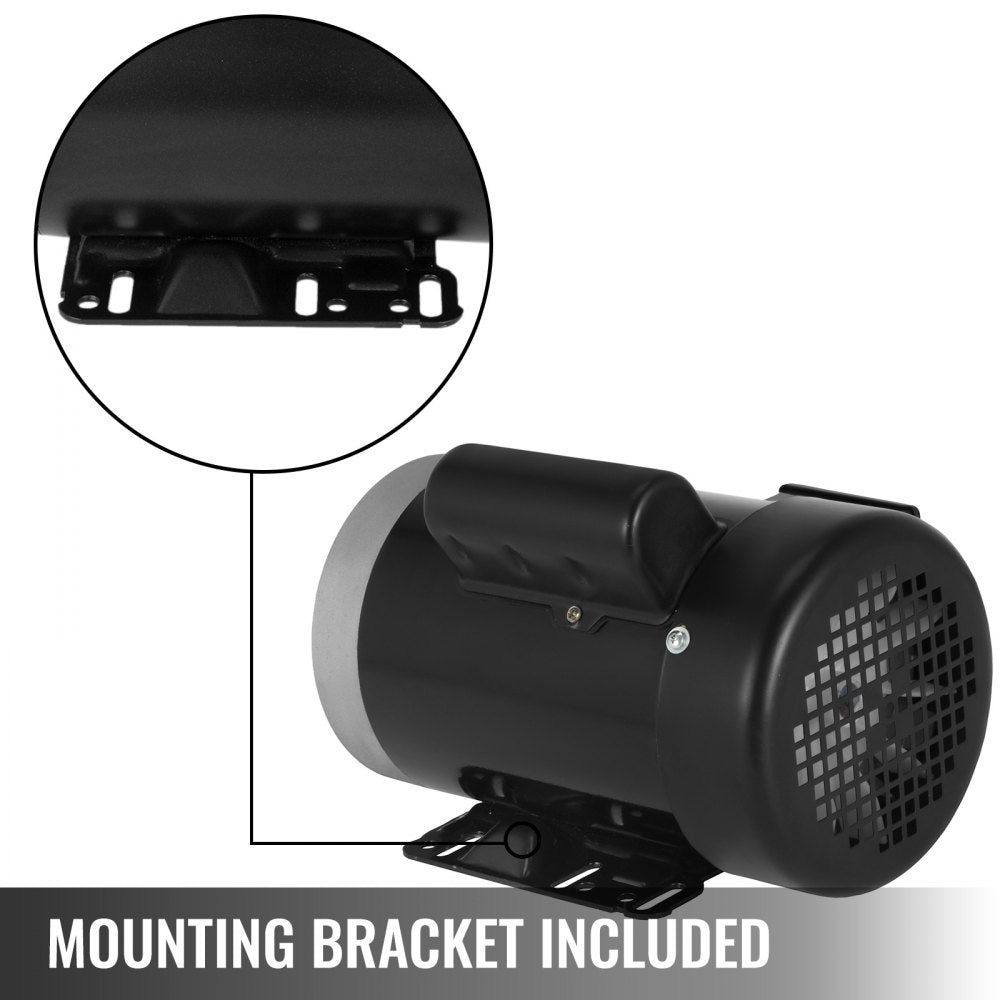

electric motor with included mounting bracket pivot.
Rigid Mounting Bracket
The general purpose electric motor comes with a sturdy mounting bracket, which enhances the motor`s stability and reduces friction.

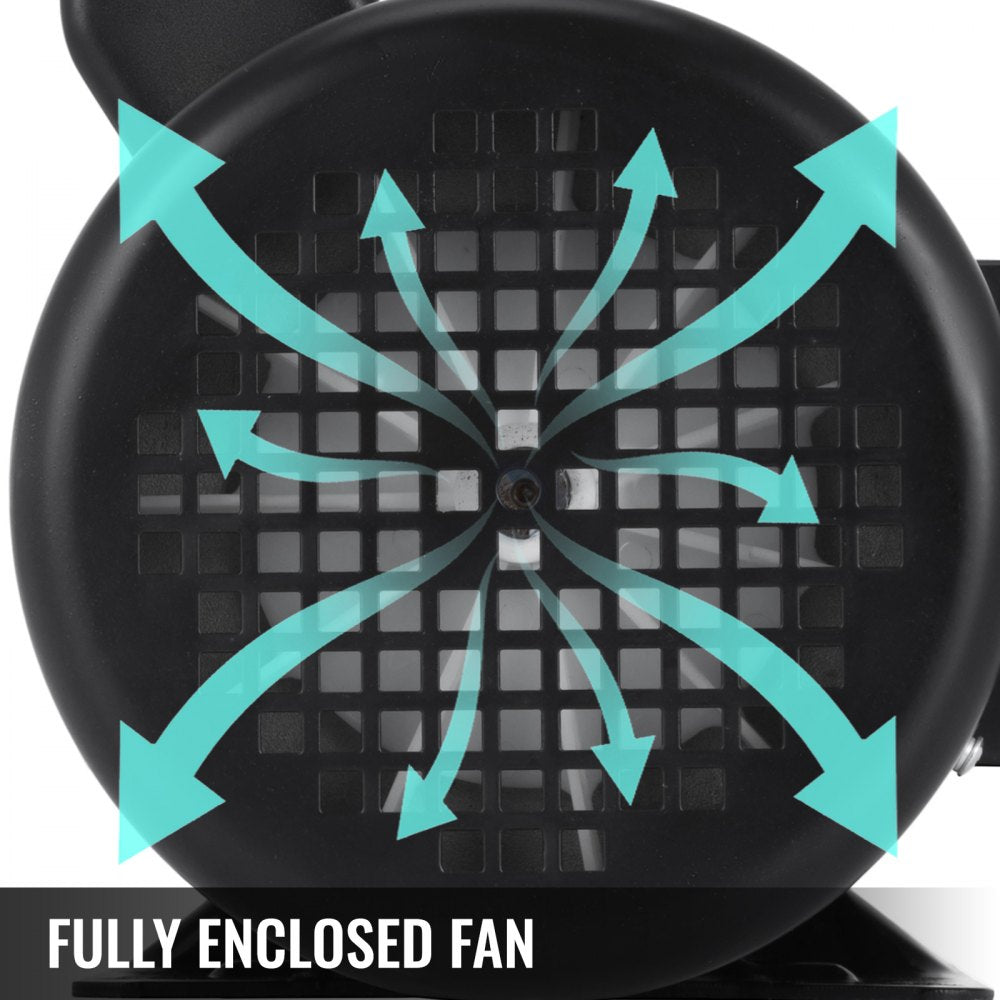

electric motor with fully enclosed fan for efficient cooling
Fully Enclosed Fan
A built-in silent cooling fan will quickly dissipate heat while running for a long time. With multiple heat dissipation holes, effectively guarding the motor`s body.
electric motor demonstrating wide application in machinery and industrial settings.
Wide Application
This motor 56c frame is suitable for air compressors, medical equipment, metal cutting machines, pumps, fans, transport machinery, food machinery, etc.
electric motor - black casing, red warning label, and size dimensions.
Specifications
  • Type: SHDC
  • Phase: Single Phase, 2 Pole
  • Horsepower: 1 HP
  • Voltage: 115/230V
  • Full Load Amps: 11.2/5.6A
  • Frequency: 60 Hz
  • Rated Speed: 3450 RPM
  • Synchronous Speed: 3600 RPM
  • Frame: 56C Frame
  • Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft
  • Shaft Length: 1.875 in / 4.8 cm
  • Rotation: CW - CCW(Reversible)
  • ENC: TEFC
  • Service Factor: 1.15
  • Insulation Class: F
  • AC Motor Type: Induction Motor
  • Reversible/Non-Reversible: Reversible

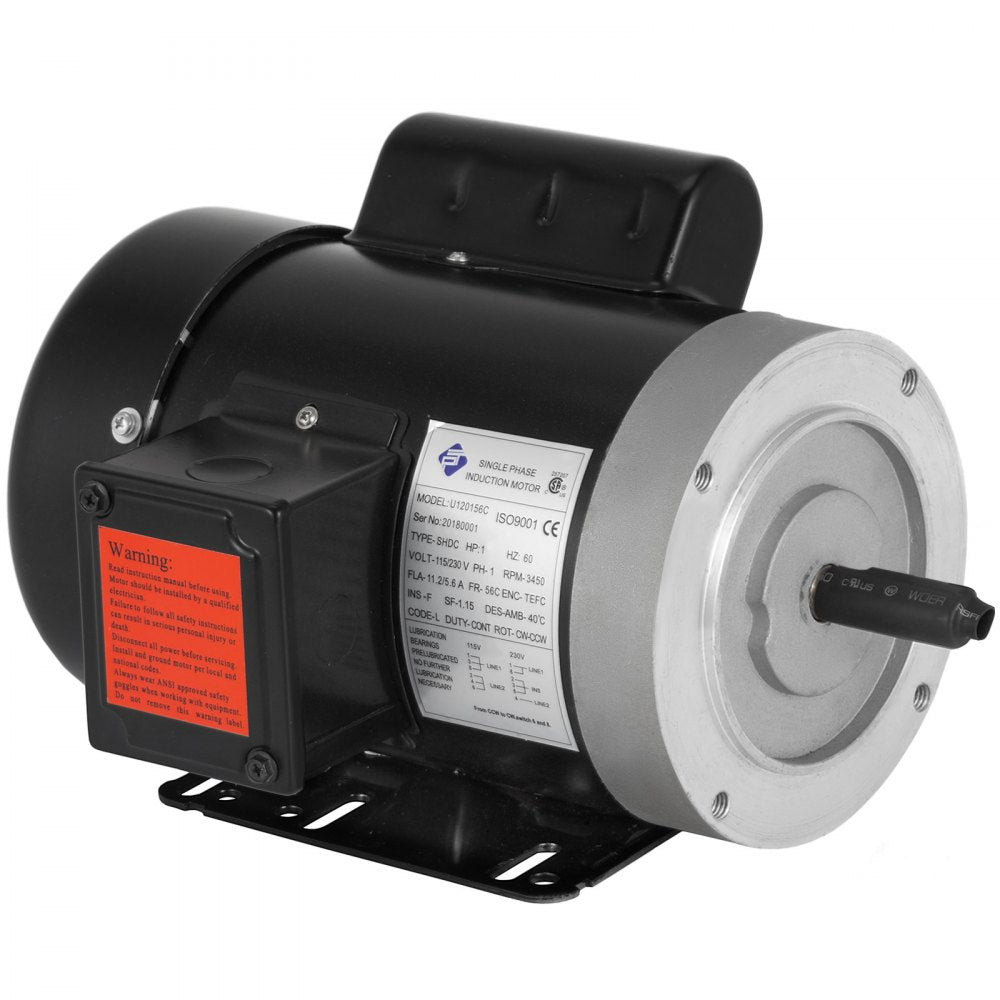

black electric motor with a silver end cap and red safety warning label
Package Content
  • 1 x Electric Motor
  • 1 x Product Manual
